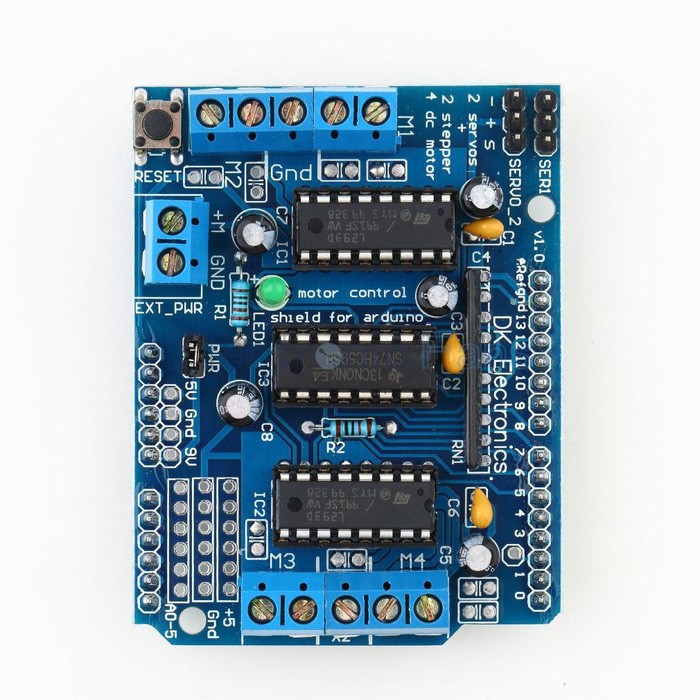

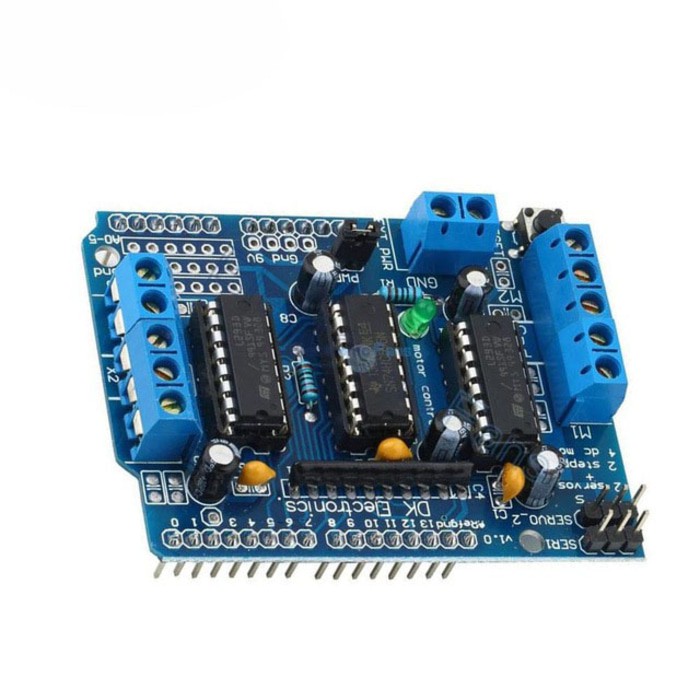

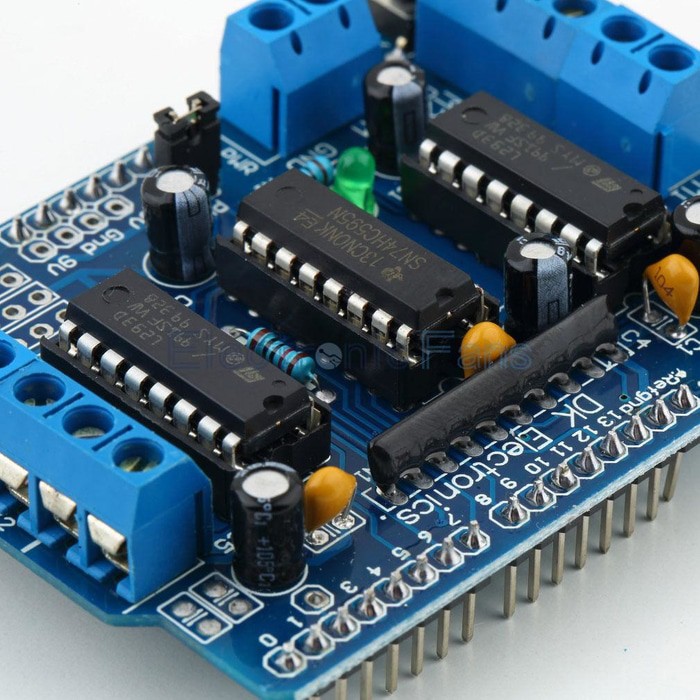

Motor driver shield L293D yang kompatibel dengan board arduino (bisa ditancapkan langsung di arduino UNO dan MEGA). Spesifikasi : -Four H-Bridges: Two L293D Motor driver chips -L293D is rated at 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes. -Motor Voltages from 4.5VDC to 16VDC. (up to 36V if C6 and C7 are upgraded) -Up to 4 bi-directional DC motors with individual 8-bit speed selection (256 speeds) -Up to 2 stepper motors (unipolar or bipolar) -Pull down resistors keep motors disabled during power-up -Separate Logic and Motor power connections -Terminal block connectors for motors and power -2 connections for 5V 'hobby' servos Dimensi (PxLxT) : 7 x 5.3 x 1.3 cm #l293d #arduino #motor #motordriver #shield #servo
